Redesigning the M2 to improve yield and offer more handle materials
The M3 will be an Epic Level UP!
New Blade Steel coming!
- Sandvik 14C28N stainless (toughest stainless that I am aware exists).
- CPM MagnaCut Stainless
Please follow my IG @UPKNIFE or subscribe to my website to stay posted on my progress

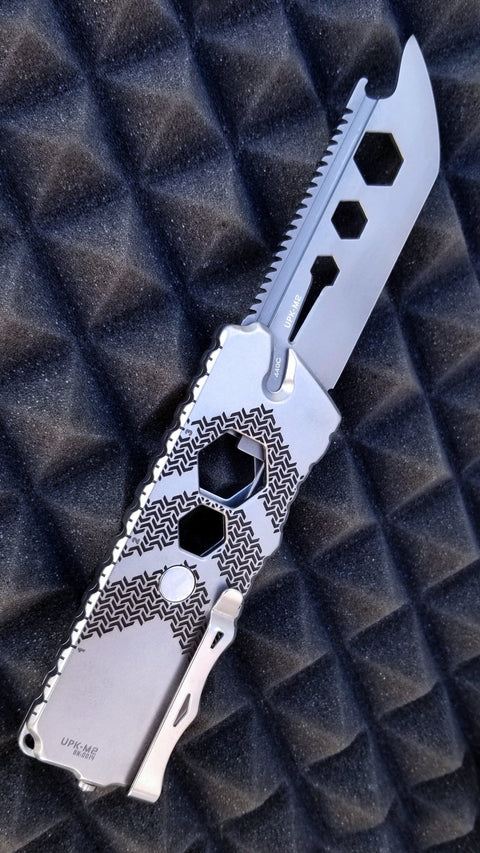

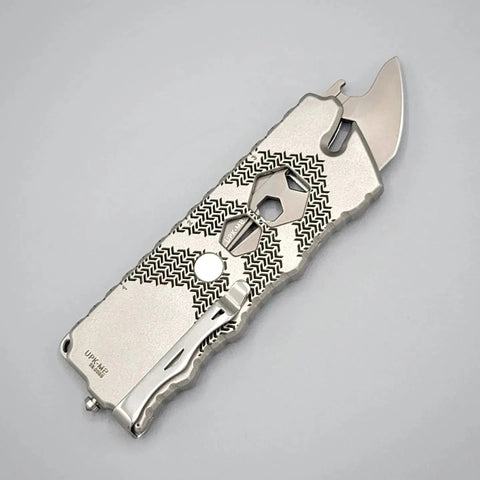

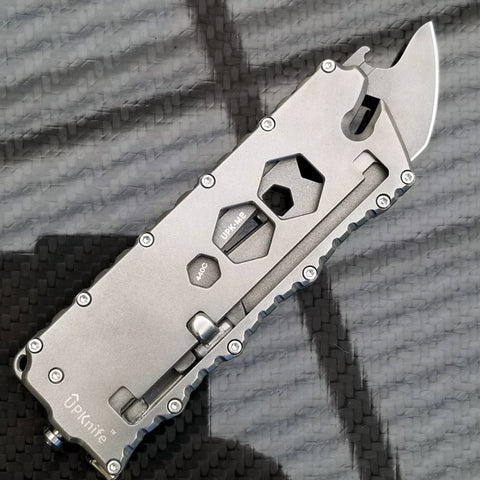

The Hardened Stainless Steel handle set is given a darkening during its multi-step finish process. First finished with a deeply textured charcoal color. Then it is micro shot peened to improve scratch resistance creating a stronger surface while retaining the darkened tone. The second to last step is laser marking and engraving, brand, model, serial number, and then a deep laser engraved grip pattern are applied to the handles and blade. The surface is further treated to passivation to ensure the handles have a superior corrosion resistance.

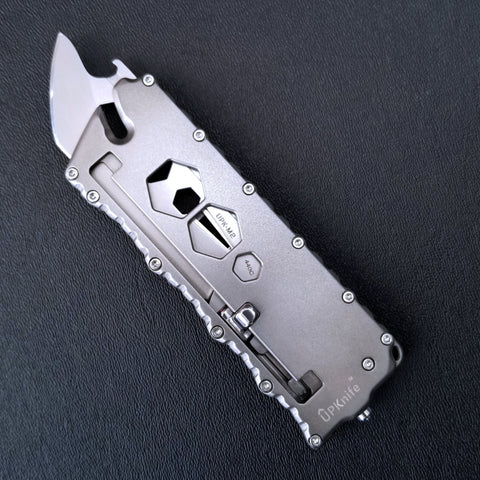

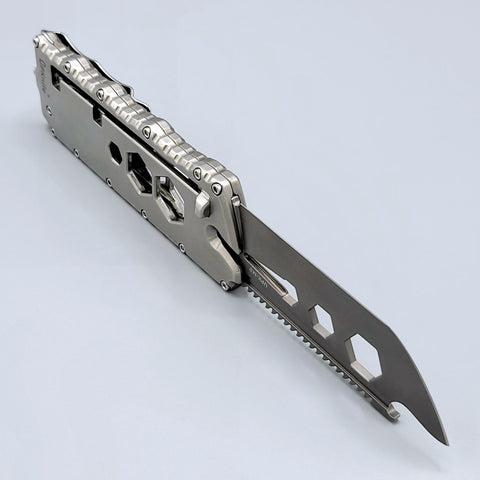

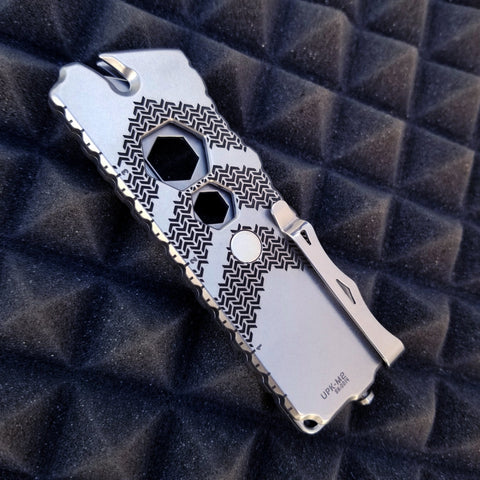

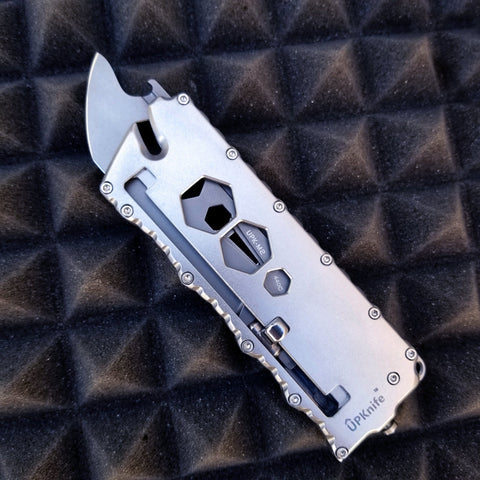

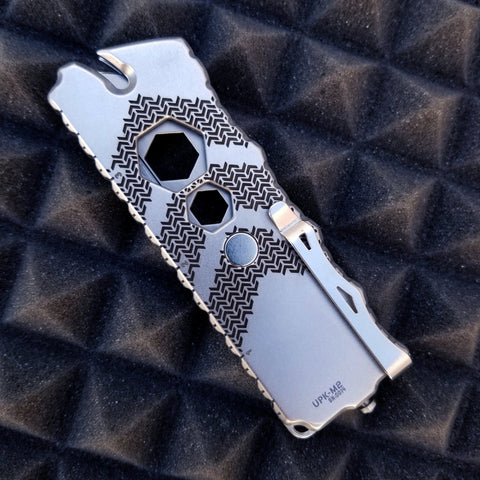

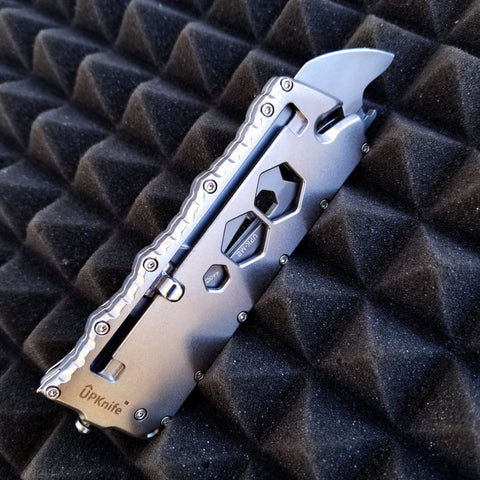

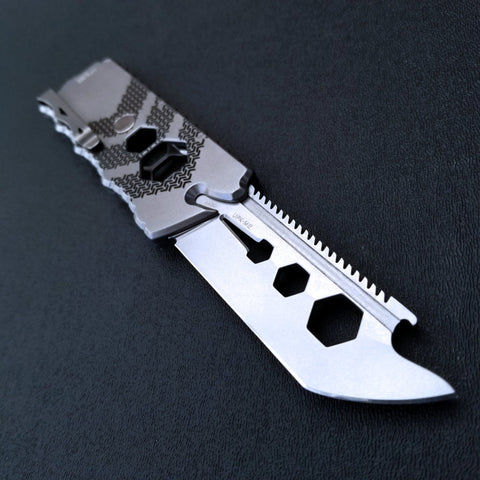

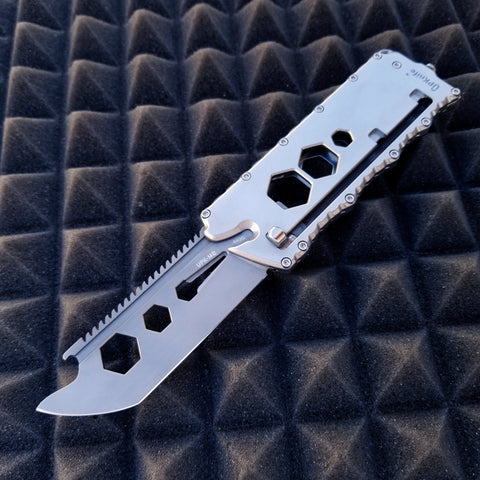

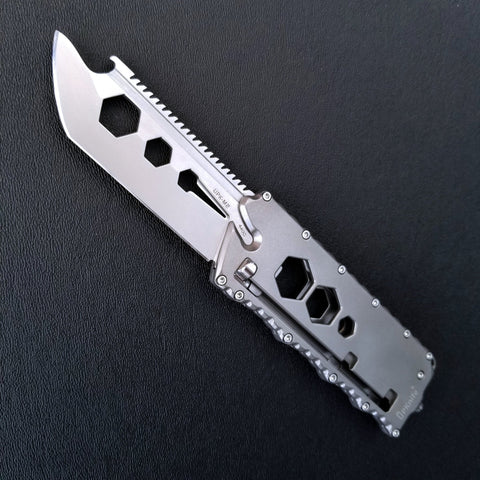

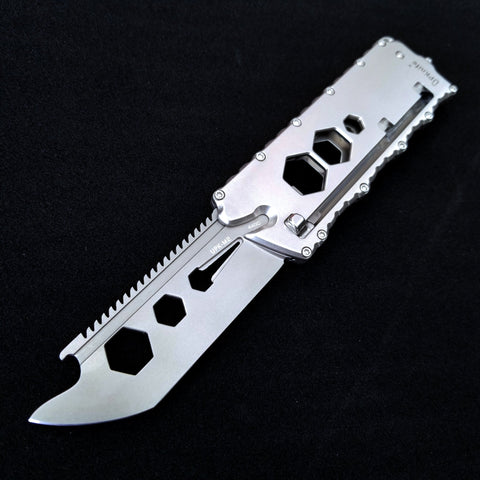

The 450SS H900 Hardened Stainless Steel handle set is given a natural textured finish that reflects light with an even sheen, using micro shot peening to further harden the surface and optimize its scratch resistance. The second to last step is laser marking and engraving, brand, model, serial number, and then a deep laser engraved grip pattern are applied to the handles and blade. The surface is further treated to passivation to ensure the handles and blade have a superior corrosion resistance.
- 3 Position Bolt Action OTF Operation
- 3.1” 440C Heat treated Blade
- Multi-Purpose Saw
- Bottle Opener
- Box Wrench Sizes: 9 SAE/Metric
- Dual: 9/16"(15mm), 1/2"(13mm), 3/8"(10mm)
- Solo: 7/16", (12mm), 1/4"
- 1/4" Bit Driver Driver (T-Handle) with retention
- NdFeB magnet(removable)
- Wire Stripper fixed V-blade
- Tungsten Carbide Glass Breaker Tip with Center-Punch Action

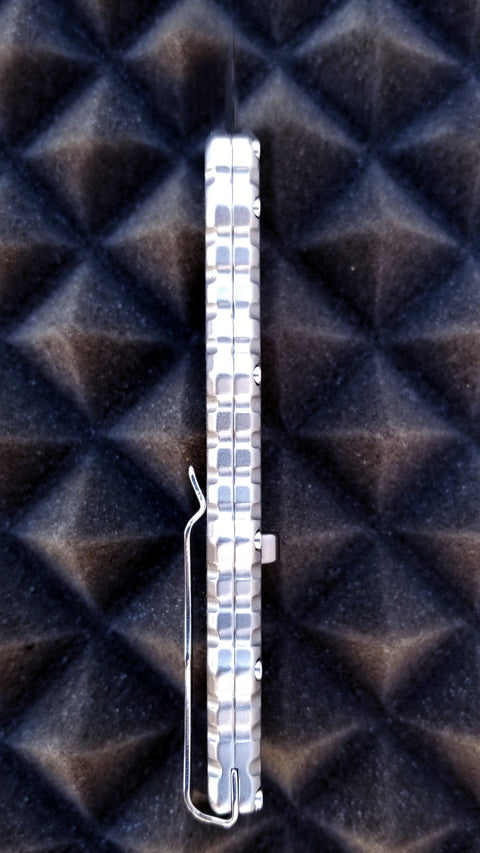

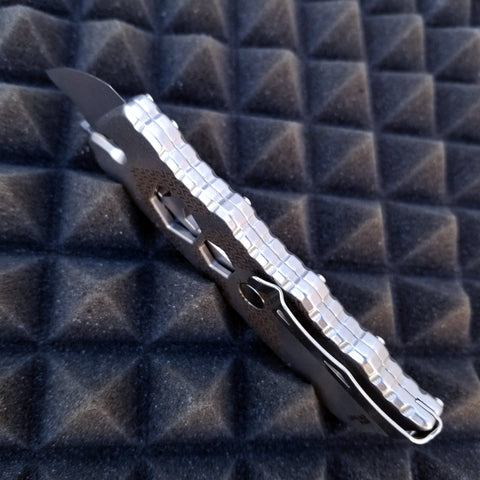

- Deep Carry Concealed Pocket clip
- holds up to a 1.5" Belt Width
- Integrated Lanyard Loop
What is it made out of?
ALL STAINLESS STEEL*
Blade steel: 440C Stainless Steel Heat treated target HRC: 60
Handle and Bolt Lever material: 450 Stainless steel Heat treated to HRC: 45
Hardware material: 316 Stainless screws, 302 Stainless Springs and Pocket Clip, 304 Stainless Dowels, 440C Stainless Steel Ball Bearing, 304 Stainless carrier for a *Tungsten Carbide glass breaker tip, *Neodymium Magnet
Knife pattern: Hybrid Tanto Custom Multi-tool Blade Pattern
Blade length: 3.1inch
Blade grind and micro bevel: Flat Sabre Grind, wet ground and sharpened to preserve the temper all the way to the edge
Length Closed: 4.3" (110mm)
Partial Open Length: 5.1" (130mm)
Full Open Length: 7.2" (184)
Width: 1 3/8" (35mm)
Thickness Handle: 5/16" (8mm)
Thickness Overall: 9/16" (14.2mm) clip to bolt lever
Where is it made?
USA Made Qualified Claim: Designed, Engineered, Prototyped, Tested, Ground, Finished, Sharpened, Laser Engraved, Passivated, Assembled, and packaged in-house in Agua Dulce, CA, USA with imported and US sourced materials and hardware.
