UPK-M2 Lite * LEFT HANDED ONLY!*

$199.95 $249.95
A Bolt-Action OTF MultiTool Knife Built Tough!

*UPK-M2 Lite!

Estimated Ship date is end of August and is a best estimation

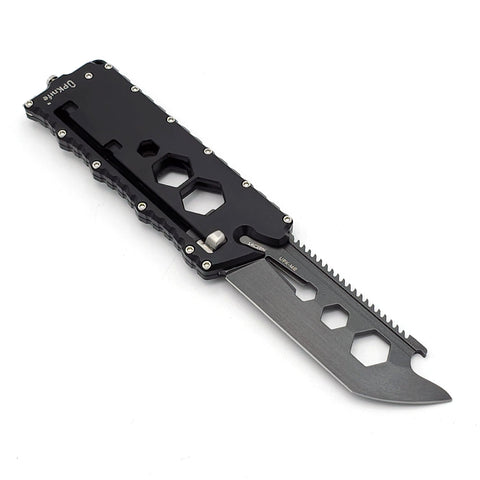

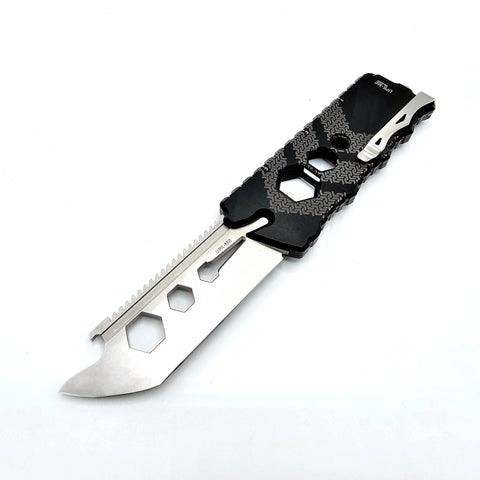

*Photos and videos shown are prototypes*

Please follow my IG @UPKNIFE or subscribe to my website to stay posted on my progress

Thank you,
John Risch

The UPK-M2 Lite offers the design features of the original UPK-M2 with a lightweight and economical high strength 7075-T6 handle set and a blade made in one of the most optimized blade steels available, Sandvik 14C28N.

Blade:
Hand ground and hand finished blade made in Sandvik 14C28N Stainless Steel Heat treated and Cryo treated HRC 60-61.  The finish is micro ball peened using ultra high density beads to create surface compression, a process that improves resilience to scratches and offer anti-fatigue properties.


Handle Finish: Hardcoat Anodized 7075-T6 Aluminum

   Made in the strongest Aluminum Alloy practical to make a handle from, the 7075-T6 Aluminum boasts a tensile stregnth of 74 ksi which is well into steel strength territory.  The hardcoat anodize is a military specification thickness of anodize that provides a high strength skin of Aluminum oxide to improve durability and scratch resistance over standard anodize aluminum parts.

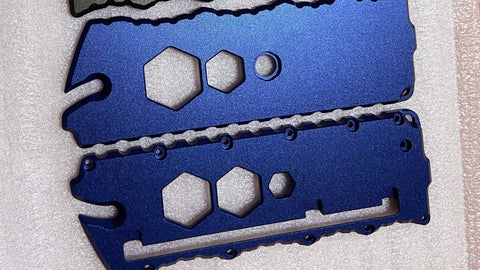

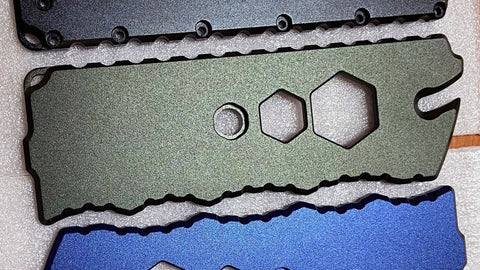

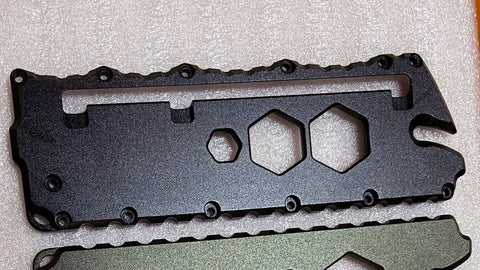

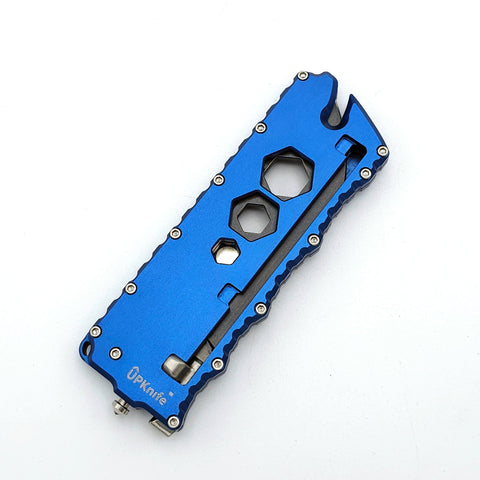

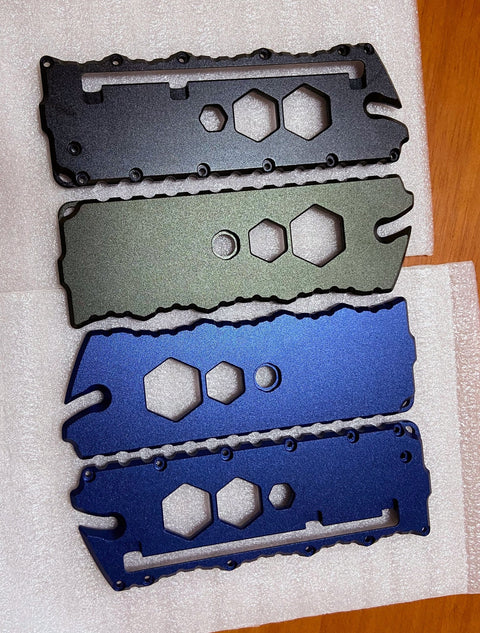

Available in Black, Navy Blue and Dark OD Green, the handles offer a stark contrast to the Blades micro peened surface.




Features:

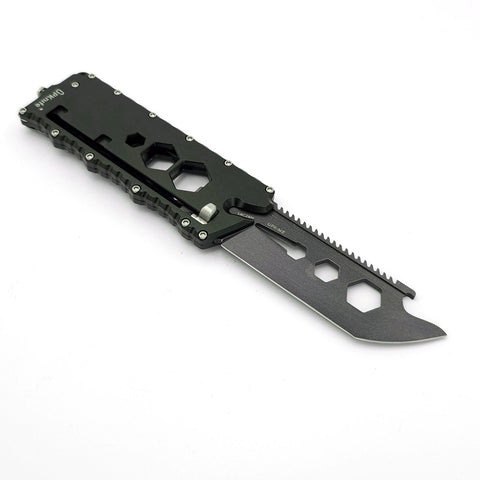

  • 3 Position Bolt Action OTF Operation
  • 3.1” Sandvik 14C28N Stainless Heat treated Blade
  • Multi-Purpose Saw
  • Bottle Opener

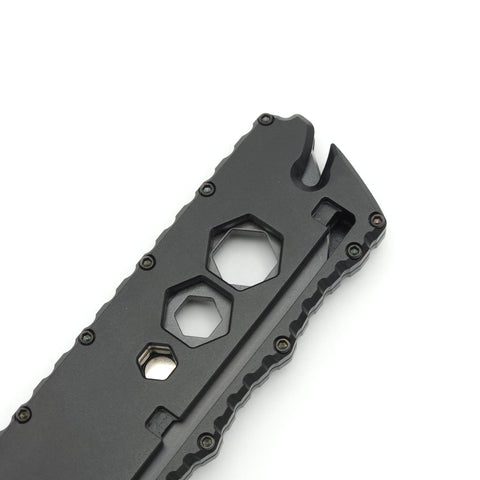

  • Box Wrench Sizes: 9 SAE/Metric
    • Dual: 9/16"(15mm), 1/2"(13mm), 3/8"(10mm)
    • Solo: 7/16", (12mm), 1/4"
  • 1/4" Bit Driver Driver (T-Handle) with NdFeB magnet retention
  • Wire Stripper fixed V-blade
  • Tungsten Carbide Glass Breaker Tip with Center-Punch Action
  • Deep Carry Concealed Pocket clip
    • holds up to a 1.5" Belt Width
  • Integrated Lanyard Loop



What is it made out of?

Blade steel: Sandvik 14C28N Stainless Steel Heat treated target HRC: 61

Handle Material: 7075-T6 Aluminum with Hardcoat Andoize

Bolt Lever material: 450 Stainless steel Heat treated to HRC: 45

Hardware material: 316 Stainless screws, 302 Stainless Springs and Pocket Clip, 304 Stainless Dowels, 440C Stainless Steel Ball Bearing, 304 Stainless carrier for a *Tungsten Carbide glass breaker tip, *Neodymium Magnet



Specifications:

Knife pattern: Hybrid Tanto Custom Multi-tool Blade Pattern

Blade length: 3.1inch

Blade grind and micro bevel: Flat Sabre Grind, wet ground and sharpened to preserve the temper all the way to the edge

Dimensions:

Length Closed: 4.3" (110mm)

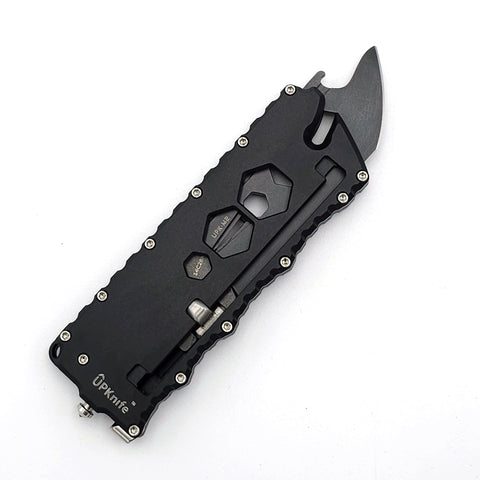

Partial Open Length: 5.1" (130mm)

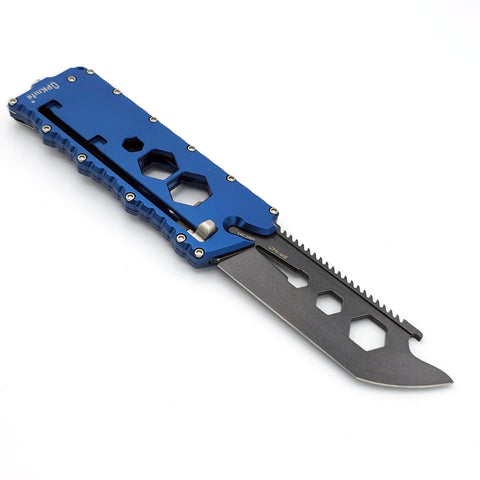

Full Open Length: 7.2" (184)
Width: 1 3/8" (35mm)
Thickness Handle: 5/16" (8mm)
Thickness Overall: 9/16" (14.2mm) clip to bolt lever
Weight: 2.5 oz.



Where is it made?

USA Made Qualified Claim: Designed, Engineered, Prototyped, Tested, Ground, Finished, Sharpened, Laser Engraved, Passivated, Assembled, and packaged in-house in Agua Dulce, CA, USA with imported and US sourced materials and hardware.
