UPKnife

UPK-D4 Eclipse M-LOK Direct Hybrid SS-AL

$199.95 $226.04
Options
Select Button Color
Select Edge
Price
$199.95 $226.04you save $26.09

M-LOK Direct Mount Bayonet

This UPK-D4 Eclipse M-LOK Direct has a Blade made of 440A Hardened Stainless Steel and a Direct to M-LOK Mount Base made of Type III Hardcoat 7075-T6 Aluminum

  • Blade has a triangular cross-section for improved off-axis loading
  • Blood Groove- The functional slot enhances fluid drainage when piercing fluid cavities
  • Retractable Bayonet Defensive Implement
  • The Eclipse Offers Self-sheathing when retracted
  • Retractable Blade automatically Locks at either position (open/closed)
  • Options: Unsharpened, or Fully Double-Edged (A knife having dual effective cutting edges)

What’s included?

x1 UPK-D4 Eclipse M-LOK Direct Mount hybrid SS-AL

  •  Retractable blade and base
  • 3x Screws, M-LOK interface, and M-LOK nuts

Material Specifications:

  • Blade Milled from 440A Stainless Steel HRC: 45
    • 220ksi Tensile Strength
  • M-LOK Direct Mount Base and interface Milled from 7075-T6 Aluminum
    • Hardcoat Type III Anodized
    • 80 ksi Tensile Strength
  • M-LOK Screws
    • Black Oxide Alloy Steel(140ksi) HRC 39
  • M-LOK Nuts
    • Block Oxide 440A Stainless Steel (220ksi) HRC 45
  • Custom Button made in 7075-T6 Aluminum
    • Black, Crimson, Patriot Blue, OD-Green, or Gold Hardcoat Type III Anodize
  • Custom Screws made in 450 Stainless steel
    • Heat Treated by Age Hardening to the H900 condition HRC 45
  • 301 Stainless Steel Springs
    • Cold work Hardened to a Spring Temper

Dimensions

  • Extended length: 13.5 inches (343mm)
  • Collapsed length: 9.2 inches (233mm)
  • Closed Stickout from last M-Lok slot: Base Tip End to First M-LOK Screw(Center): 7.2 inches (183mm)
  • Weight: 5.5 oz

Important Read:

440A Hardened Stainless Steel HRC 45 - chosen off provide Bend before break toughness, this alloy and temper combination provide a robust strength and reliability that allow the blade to even be bend back to straight if without significant damage to its integrity.

7075-T6 Tempered Aluminum is a lightweight aluminum with steel like strength, one of the strongest Aluminum alloys available with a tensile strength of 80ksi.  The Hardcoat Type III Anodize provides a resilient protective surface. for reference typical steel screws at a hardware store are typically rated 60ksi

Share

Facebook X (Twitter) Pinterest

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Todd T.
Great Product Quality! Amazing Customer Service!!

I searched for an AR M-LOK bayonet for a long time and kept returning to UPKnife. Ultimately, I decided on the UPK-D4 Eclipse M-LOK Direct Hybrid SS-AL. It is lightweight, very strong, and does not require me to carry the bayonet separately. The UPKnife owner, John, and I chatted via his webpage chat feature over a couple of days. He was very patient with me, and his knowledge and willingness to answer all of my questions sealed the deal. The bayonet already has an amazing stab/thrust capability, so I paid a little more for John to sharpen the lower edge so the bayonet also had a slicing capacity. I highly recommend doing business with UPKnife!

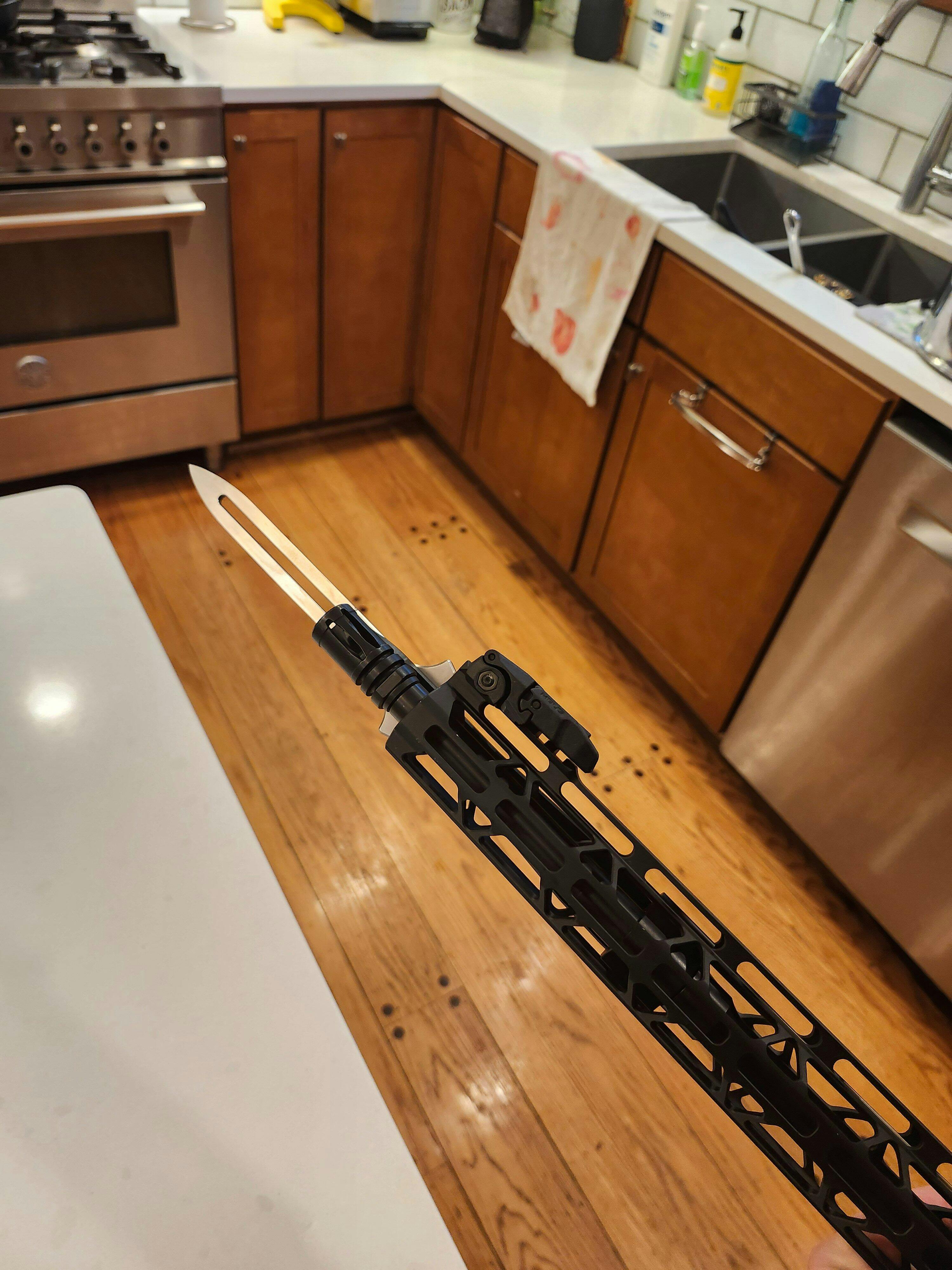

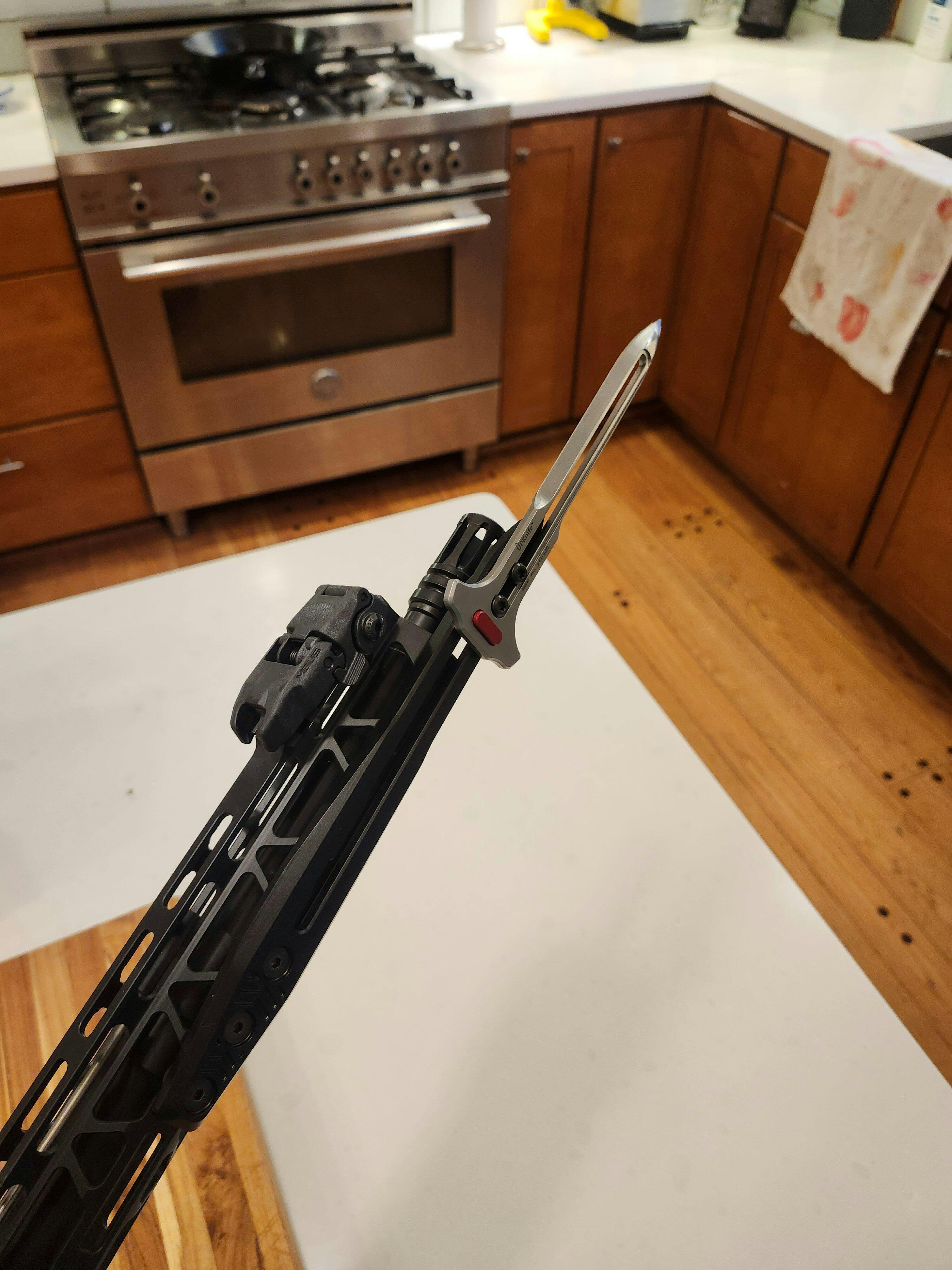

User picture User picture User picture

Thank you Todd for your support! I'm thrilled that I was able to provide you unique solution, yours is one of a kind!
Thank you,
John Risch UPKnife owner designer
